Wuling Sunshine PHEV Red Cross Medical Rescue Ambulance

share
Facebook
LinkedIn
Whatsapp
Tumblr
Product Type Medical Rescue Ambulance
Model Tool Vehicle
External Length 4985×1800×1975 mm
Total Quality 2650KG
Rated Passenger Capacity 2-6 People
Charging Power 45mins
Charging Time 3.5-6.7h
Whatsapp
Reservation Now
Detail

Full Extended Vehicle Parameters


Power & Energy Parameters

  • Power type: PHEV plug-in hybrid (EV pure electric mode + fuel extended range)

  • Battery type: Lithium iron phosphate LFP battery, optional 9.5kWh / 20.5kWh

  • CLTC pure electric range: 60km (9.5kWh) / 130km (20.5kWh)

  • Max engine power: 78kW, comprehensive drive torque 130N·m

    Fuel consumption under power-losing condition: 3.98~4.09L/100km



Standard Red Cross Medical Refit Configuration

  1. Red & blue roof warning strobe lights + ambulance siren control system

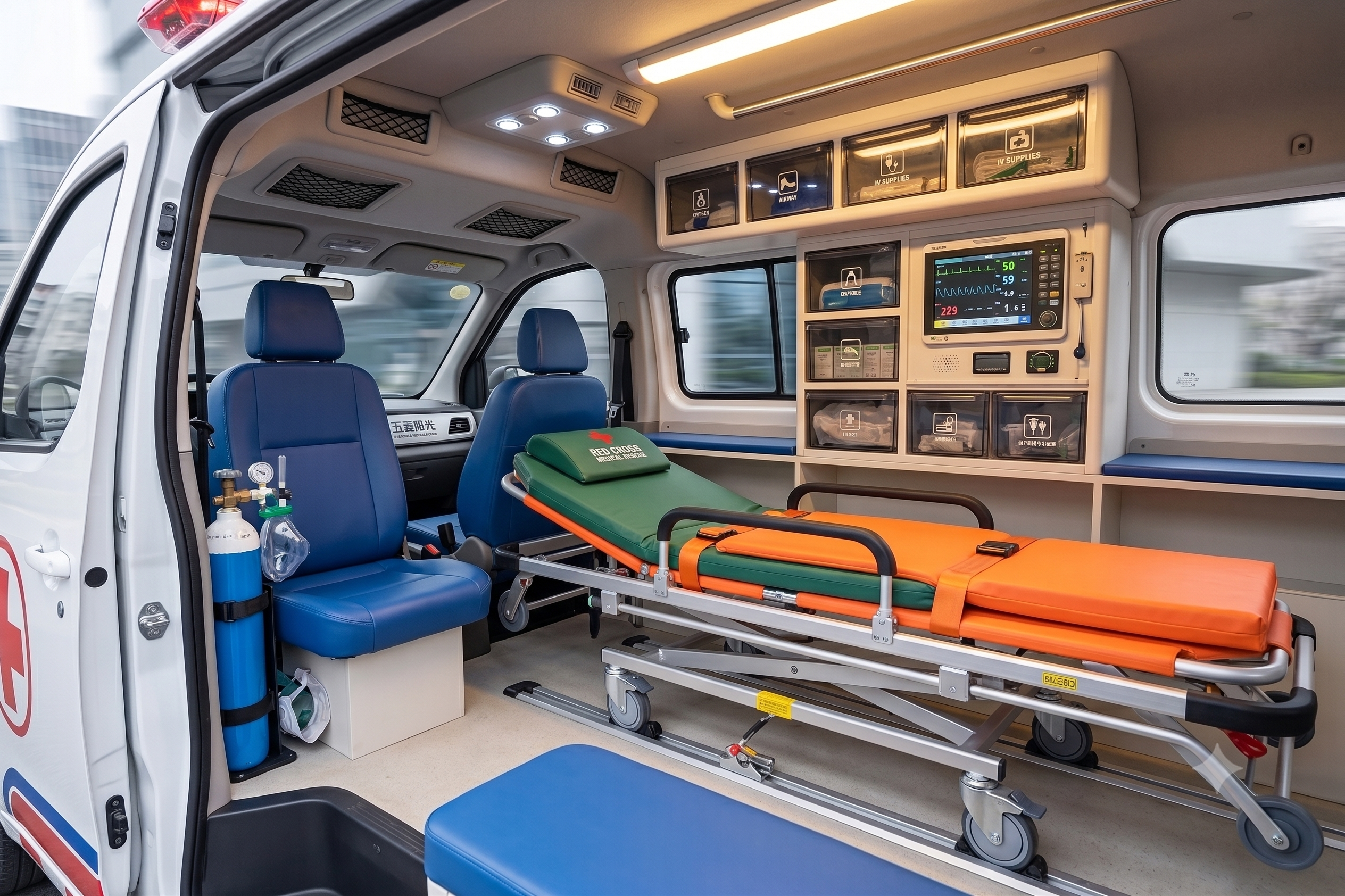

  2. Independent sealed medical compartment, isolation partition window between driver and patient cabin, intercom communication system inside vehicle

  3. Fixed bracket for medical oxygen cylinder, guide rail for emergency stretcher

  4. 12V/220V 1000W power inverter, ultraviolet disinfection lamp inside compartment

  5. Independent heating & cooling air conditioner for medical cabin

  6. Complete Red Cross medical rescue body logos, reflective safety warning strips on body


Chassis & Body Parameters

  • Body structure: Front-wheel drive light commercial van chassis

  • Suspension: Front MacPherson independent suspension + rear leaf spring suspension for stable heavy load

  • Wheel specification: Multi-spoke aluminum alloy wheels, highway tires

  • License plate: New energy green plate, legal road access for both pure electric and hybrid modes


Product Description

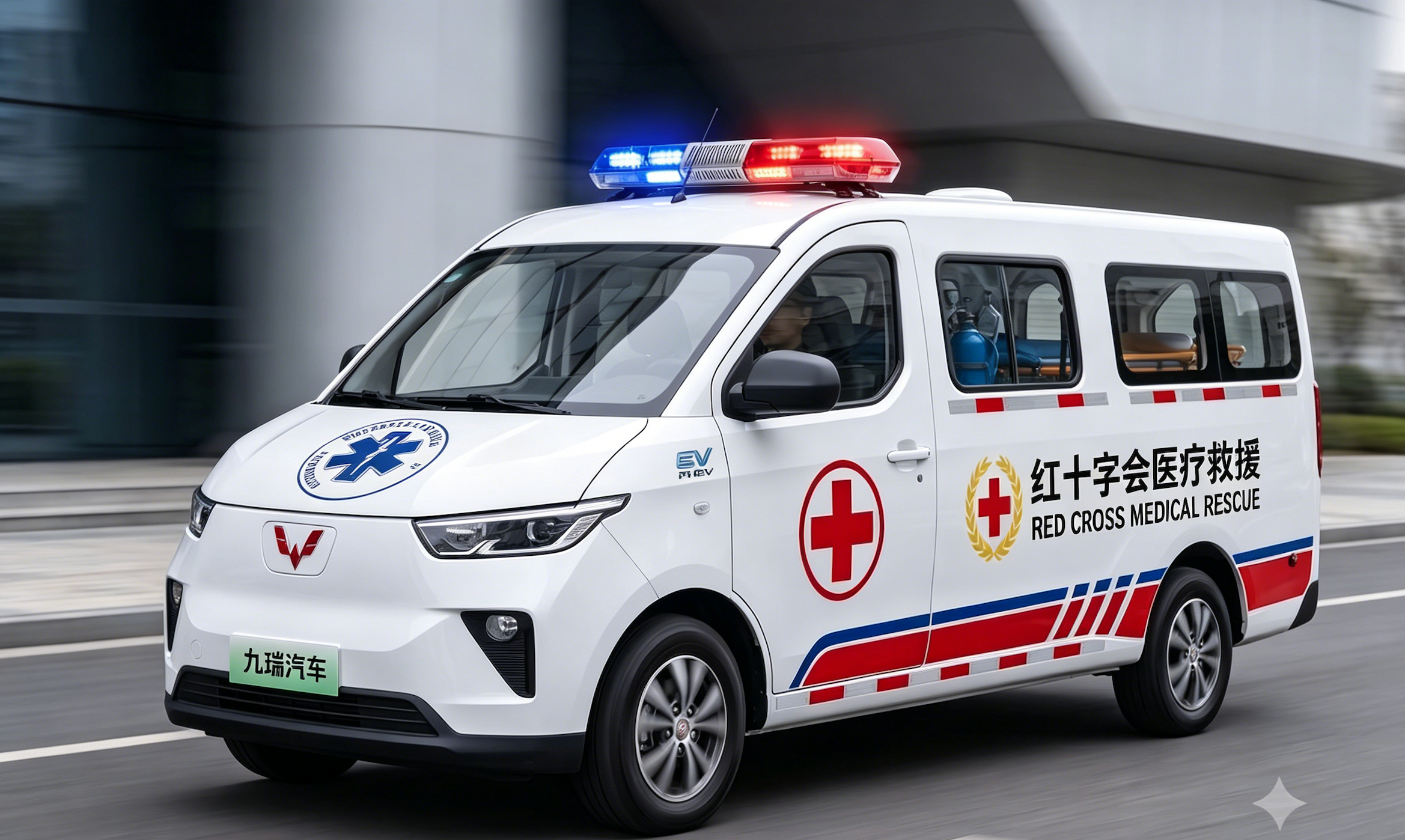

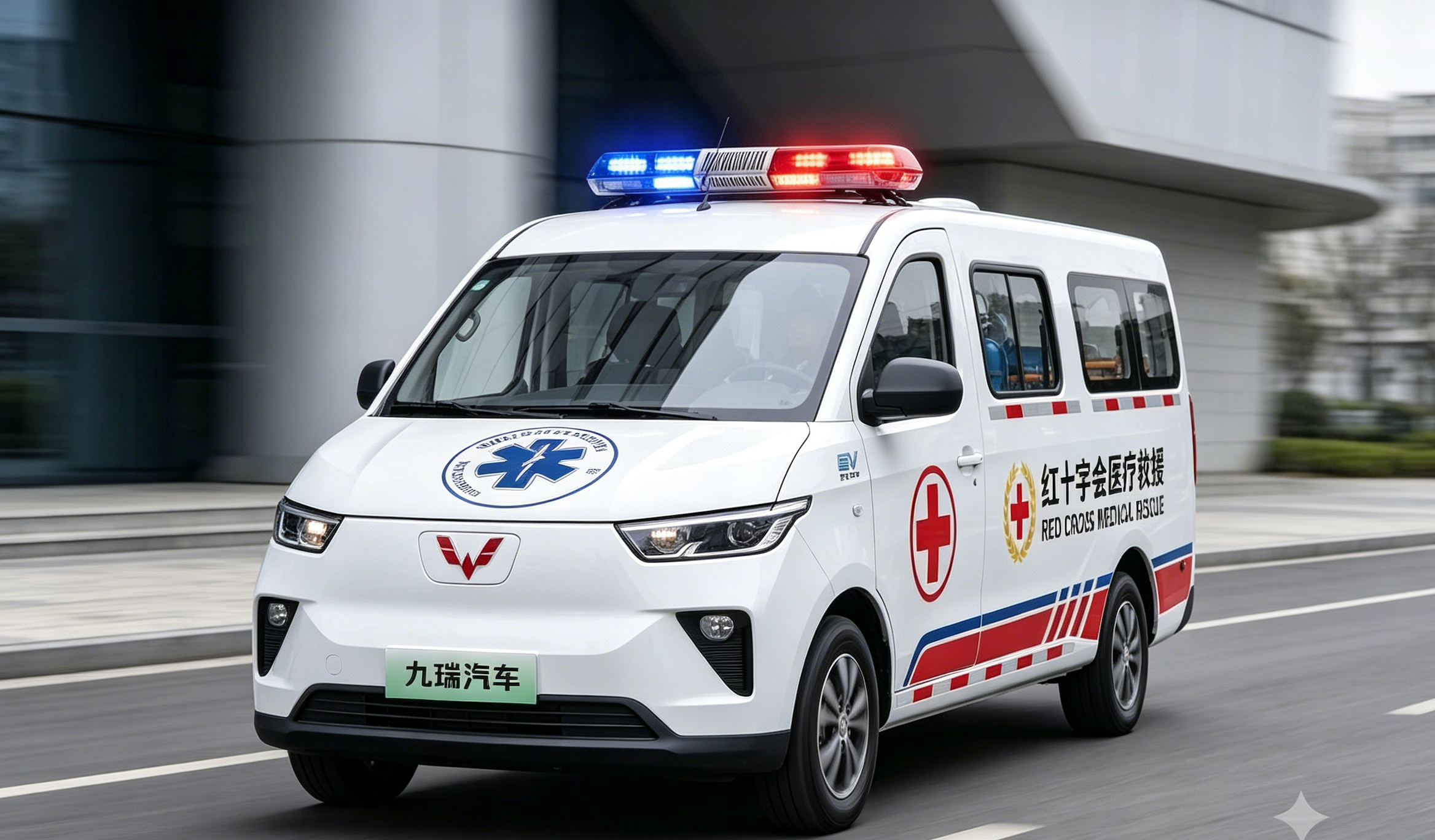

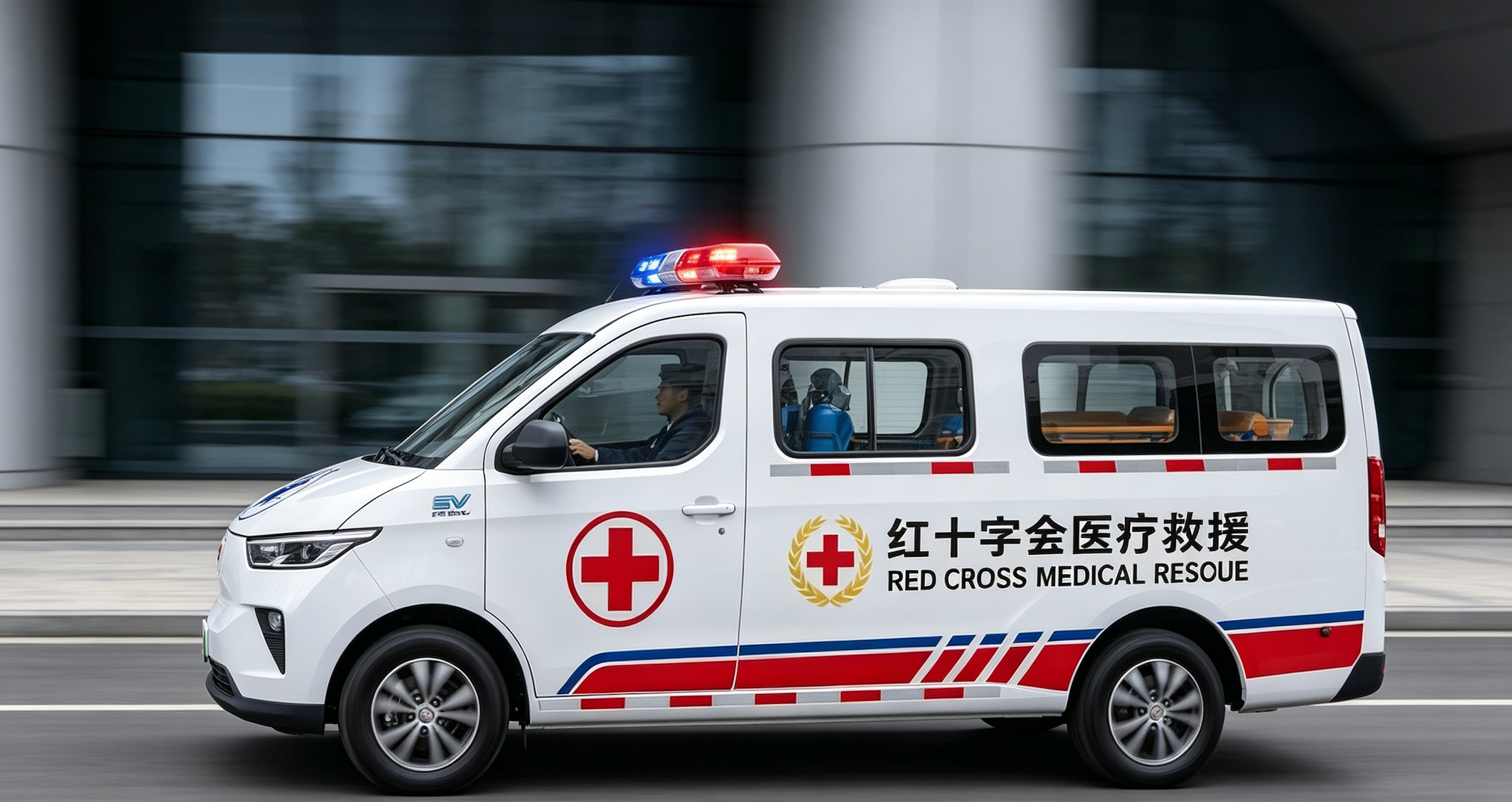

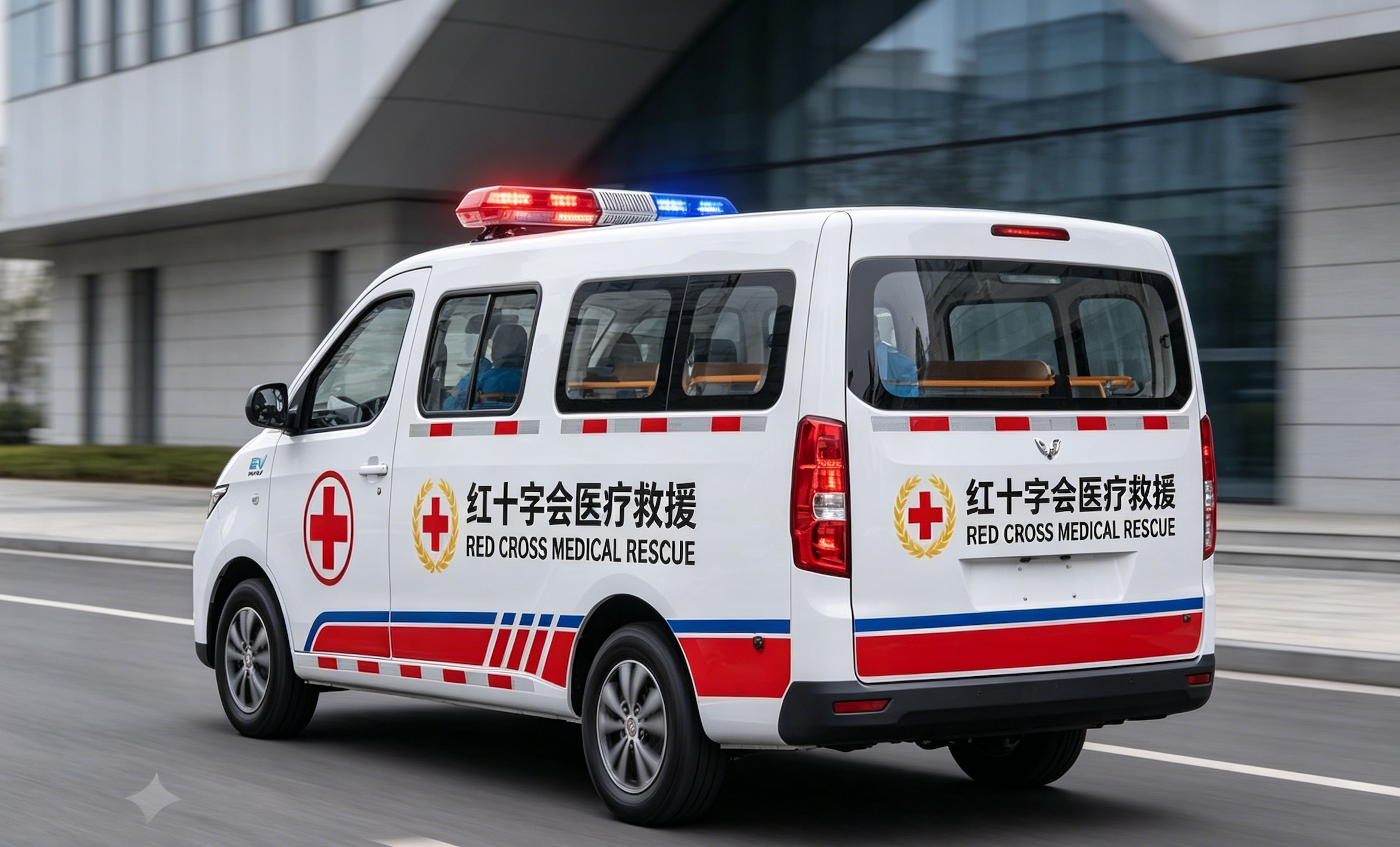

Wuling Sunshine PHEV Red Cross Medical Rescue Ambulance is professionally refitted based on Wuling Sunshine plug-in hybrid new energy chassis. It is equipped with a 6.5 cubic meters large independent medical compartment, supporting silent pure-electric emergency transfer and long-distance hybrid medical missions.
The whole vehicle comes with full set of Red Cross rescue medical equipment, roof warning light & siren system, isolated doctor-patient cabin and dedicated medical air conditioner. It only needs 30 minutes of fast charging to reach 80% battery capacity.
This ambulance balances urban short-distance emergency rescue and cross-region long-distance medical transport, featuring energy-saving, environmental protection and strong loading capacity. It is widely applicable for Red Cross organizations, township health centers and emergency medical centers for patient transfer work.
